Create a Bouncing Button Animation in Flutter

In Flutter creating animations is very simple and intuitive. In this case you will learn how to create a bouncing button animation working with controllers and values.

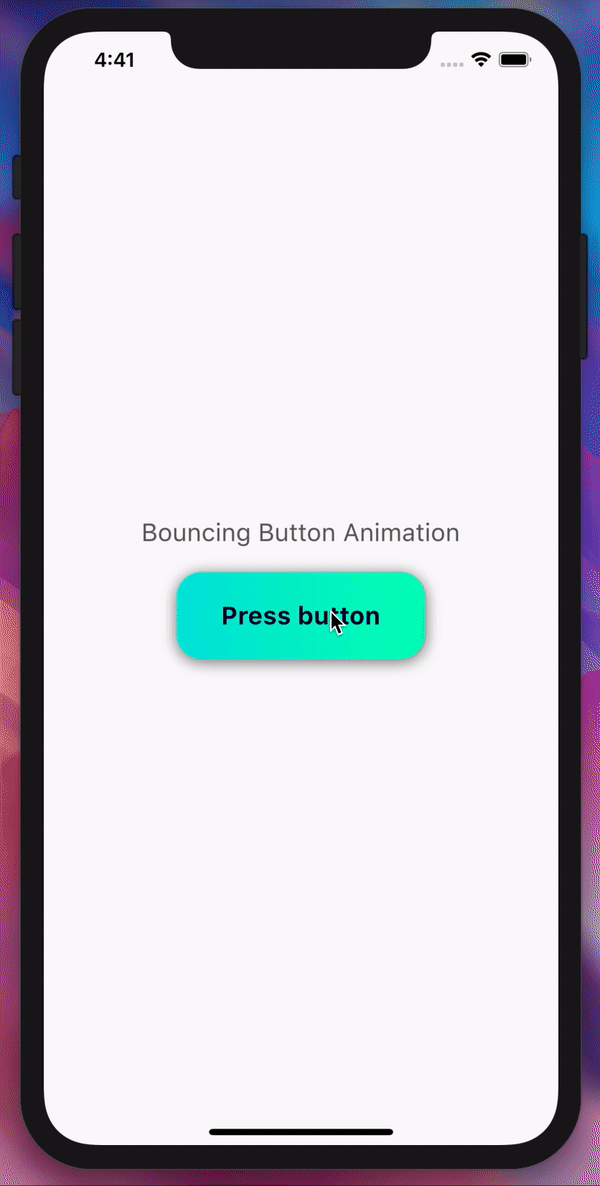

The final result of the tutorial

AnimationController class lets you perform tasks such as:

Play an animation forward on in reverse, or stop an animation;
Set the animation to a specific value;
Define the upperBound and lowerBound values of an animation;

AnimationController produces values that range from 0.0 to 1.0. during a given duration.

Ticker providers

An AnimationController needs a TickerProvider, which is configured using the vsync argument on the constructor.

The TickerProvider interface describes a factory for Ticker objects. A Ticker is an object that knows how to register itself with the SchedulerBinding and fires a callback every frame.

The AnimationController class uses a Ticker to step through the animation that it controls.

If an AnimationController is being created from a State, then the State can use the TickerProviderStateMixin and SingleTickerProviderStateMixin classes to implement the TickerProvider interface.

The TickerProviderStateMixin class always works for this purpose; the SingleTickerProviderStateMixin is slightly more efficient in the case of the class only ever needing one Ticker.

AnimationWidget

class AnimatedButton extends AnimatedWidget {
  final AnimationController _controller;
  const AnimatedButton({
    @required AnimationController controller,
  })  : _controller = controller,
        super(listenable: controller); // (a).

  @override
  Widget build(BuildContext context) {
    return Transform.scale( // (b).
      scale: 1 - _controller.value, // (c).
      child: Container(
        height: 70,
        width: 200,
        decoration: BoxDecoration(
            borderRadius: BorderRadius.circular(20.0),
            boxShadow: const [
              BoxShadow(
                color: Color(0x80000000),
                blurRadius: 10.0,
                offset: Offset(0.0, 2.0),
              ),
            ],
            gradient: LinearGradient(
              colors: const [
                Color(0xff00e6dc),
                Color(0xff00ffb9),
              ],
            )),
        child: const Center(
          child: Text('Press button',
              style: TextStyle(
                fontSize: 20.0,
                fontWeight: FontWeight.bold,
                color: Color(0xff000028),
              )),
        ),
      ),
    );
  }
}

The layout button is based on a Container with a text widget. The button has border radius and a linear gradient style.

(a) The listenable object is passed via constructor following the good dependency injection practices.
(b) Transform.scale() constructor returns a scaled widget with a scale of given value.
(c) _controller.value constantly changes and the widget is rebuilt so that you see the bouncing effect on the widget button.

class BouncingButton extends StatefulWidget {
  @override
  _BouncingButtonState createState() => _BouncingButtonState();
}

class _BouncingButtonState extends State<BouncingButton>
    with SingleTickerProviderStateMixin {
  AnimationController _controller;

  @override
  void initState() {
    _controller = AnimationController( // (a).
      vsync: this, // (b).
      duration: Duration(
        milliseconds: 500,
      ),
      lowerBound: 0.0,
      upperBound: 0.1,
    )..addListener(() { // (c).
        setState(() {});
      });
    super.initState();
  }

  @override
  void dispose() {
    super.dispose();
    // (d).
    _controller.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Column(
        mainAxisAlignment: MainAxisAlignment.center,
        children: <Widget>[
          Text(
            'Bouncing Button Animation',
            style: TextStyle(color: Colors.grey[700], fontSize: 20.0),
          ),
          const SizedBox(
            height: 20.0,
          ),
          Center(
            child: GestureDetector(
              onTapDown: _tapDown,
              onTapUp: _tapUp,
              child: AnimatedButton(controller: _controller),
            ),
          ),
        ],
      ),
    );
  }

  // (e).
  void _tapDown(TapDownDetails details) {
    _controller.forward();
  }

  // (f).
  void _tapUp(TapUpDetails details) {
    _controller.reverse();
  }
}

(a) AnimationController class generate a series of values for a given duration. By default a controller emits value from 0 to 1 with a linear interval. Our animated widget receives them and gets rebuilt.
(b) The vsync parameter of the controller prevents offscreen animations from consuming unnecessary resources. Initializing it with this gives the stateful widget the possibility to handling the animation resources automatically.
(c) addListener() calls the listener every time the value of the animation changes.
(d) An AnimationController should be disposed when it is non longer needed. This reduces the likelihood of leaks. When used with a StatefulWidget, it is common for an AnimationController to be created in the initState() method and then disposed in the dispose() method.
(e) _tapDown() is a function used when the button is tapped down. forward() starts the animation forward, in the sense that values vary from start to the end.
(f) _tapUp() is a function used when the button is released. reverse() starts the animation reverse, in the sense that values vary from the end to the start.

The full code

import 'package:flutter/material.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      debugShowCheckedModeBanner: false,
      home: BouncingButton(),
    );
  }
}

class BouncingButton extends StatefulWidget {
  @override
  _BouncingButtonState createState() => _BouncingButtonState();
}

class _BouncingButtonState extends State<BouncingButton>
    with SingleTickerProviderStateMixin {
  AnimationController _controller;

  @override
  void initState() {
    _controller = AnimationController(
      vsync: this,
      duration: Duration(
        milliseconds: 500,
      ),
      lowerBound: 0.0,
      upperBound: 0.1,
    )..addListener(() {
        setState(() {});
      });
    super.initState();
  }

  @override
  void dispose() {
    super.dispose();
    _controller.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Column(
        mainAxisAlignment: MainAxisAlignment.center,
        children: <Widget>[
          Text(
            'Bouncing Button Animation',
            style: TextStyle(color: Colors.grey[700], fontSize: 20.0),
          ),
          const SizedBox(
            height: 20.0,
          ),
          Center(
            child: GestureDetector(
              onTapDown: _tapDown,
              onTapUp: _tapUp,
              child: AnimatedButton(controller: _controller),
            ),
          ),
        ],
      ),
    );
  }

  void _tapDown(TapDownDetails details) {
    _controller.forward();
  }

  void _tapUp(TapUpDetails details) {
    _controller.reverse();
  }
}

class AnimatedButton extends AnimatedWidget {
  final AnimationController _controller;
  const AnimatedButton({
    @required AnimationController controller,
  })  : _controller = controller,
        super(listenable: controller);

  @override
  Widget build(BuildContext context) {
    return Transform.scale(
      scale: 1 - _controller.value,
      child: Container(
        height: 70,
        width: 200,
        decoration: BoxDecoration(
            borderRadius: BorderRadius.circular(20.0),
            boxShadow: const [
              BoxShadow(
                color: Color(0x80000000),
                blurRadius: 10.0,
                offset: Offset(0.0, 2.0),
              ),
            ],
            gradient: LinearGradient(
              colors: [
                Color(0xff00e6dc),
                Color(0xff00ffb9),
              ],
            )),
        child: const Center(
          child: Text('Press button',
              style: TextStyle(
                fontSize: 20.0,
                fontWeight: FontWeight.bold,
                color: Color(0xff000028),
              )),
        ),
      ),
    );
  }
}

I hope that this tip will help you for your next mobile development.

See you in the next tutorial. 😉
